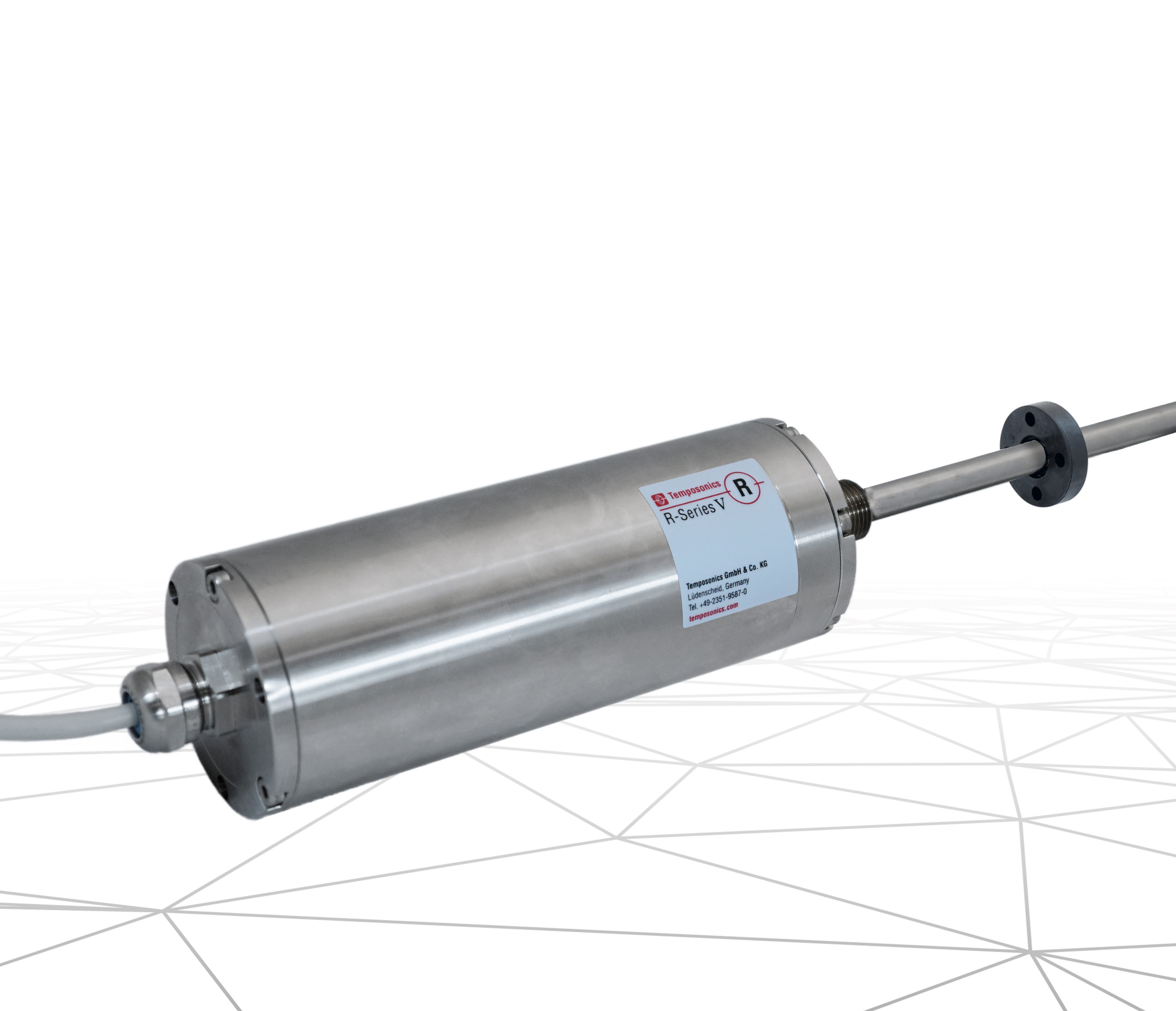

The extremely robust RM5 sensor with super shield housing, ensures long-term linear position measurement in the harshest environments
- Super shield housing with IP68/IP69 against ingress of dust and water
- Improved performance with high accuracy & reliability
- Outputs: Analog, SSI, EtherCAT®, EtherNet/IP™, POWERLINK, PROFINET
- Output of additional status information of the position sensor via the TempoLink® smart assistant or TempoGate® smart assistant
| Output | Stroke Length | Resolution | Multi-Position | Status ⓘ |
|---|---|---|---|---|
| SSI | 25…7615 mm (1…299.8 in.) | 0.1 µm | - | Active |
| Analog | 25…7615 mm (1…299.8 in.) | 16 bit | Up to 2 positions | Active |
| PROFINET | 25…7615 mm (1…299.8 in.) | 0.5 µm | Up to 30 positions | Active |
| POWERLINK | 25…7615 mm (1…299.8 in.) | 0.5 µm | Up to 30 positions | Active |
| EtherCAT® | 25…7615 mm (1…299.8 in.) | 0.5 µm | Up to 30 positions | Active |
| EtherNet/IP™ | 25…7615 mm (1…299.8 in.) | 1 µm | Up to 20 positions | Active |
